Telnyx Integration

A step-by-step guide to connect your Telnyx phone numbers via SIP trunking

This guide walks you through connecting your Telnyx phone numbers using SIP trunking. You will create an FQDN connection in Telnyx, configure outbound authentication, assign your numbers, and import them into Famulor.

​

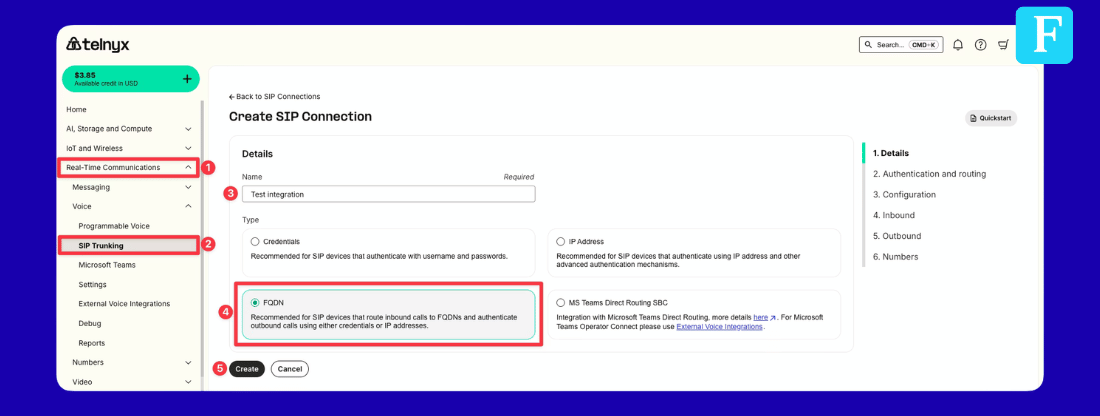

Step 1: Create SIP Connection

1. Log in to the Telnyx Mission Control Portal
2. Navigate to Real-Time Communications -> Voice -> SIP Trunking
3. Click Create SIP Connection
4. Name: Choose a name (for example, my-company SIP trunk)
5. Type: Select FQDN
6. Click Create - this opens the setup wizard


​

Step 2: Authentication and Routing

The wizard takes you to the Authentication and routing step. Here you add the FQDN for inbound call routing and set up outbound credentials.

​

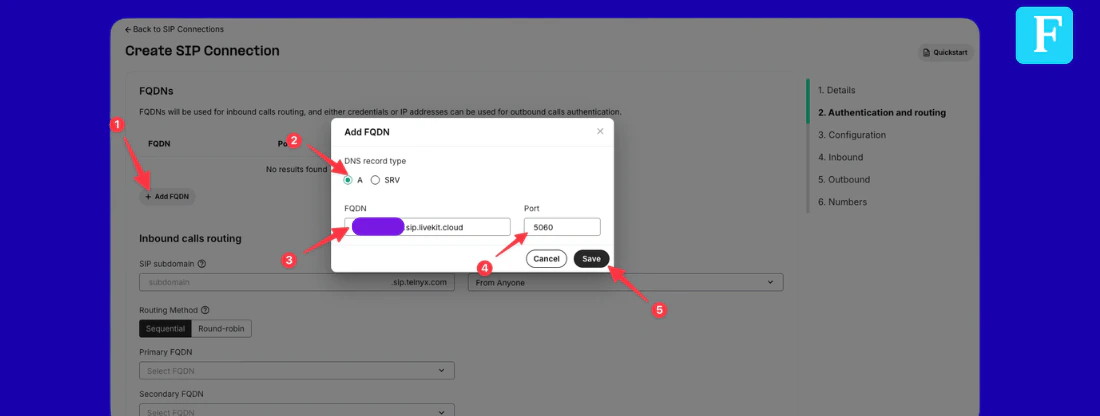

Add FQDN

1. Click ”+ Add FQDN” and enter:
   • DNS Record Type: A
   • FQDN: {famulorsipadress}.sip.livekit.cloud
   • Port: 5060
2. Click Save


​

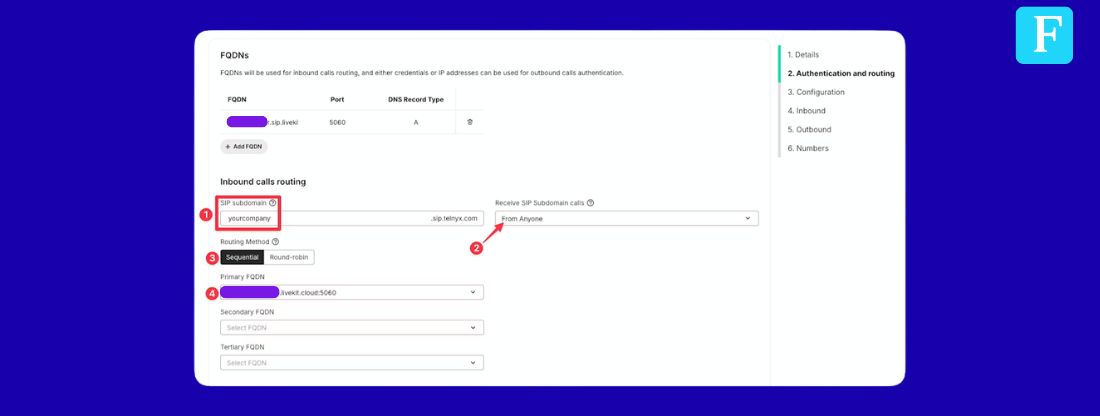

Inbound Calls Routing

Scroll down to the Inbound calls routing section on the same page:

1. SIP subdomain: Enter a name (for example, yourcompany) - this creates yourcompany.sip.telnyx.com
2. Receive SIP Subdomain calls: Set to From Anyone
3. Primary FQDN: Select {famulorsipadress}.sip.livekit.cloud from the dropdown


​

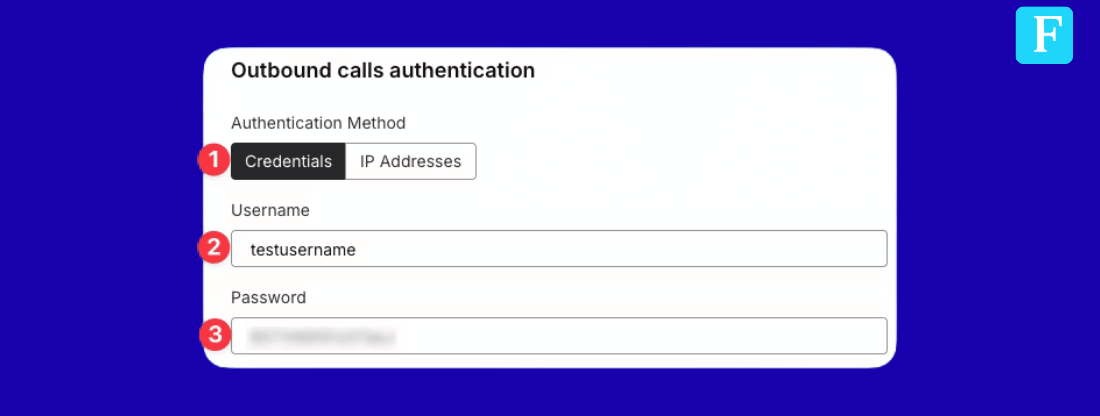

Outbound Authentication

Scroll down further to the Outbound calls authentication section:

1. Method: Select Credentials
2. Set a username and password - save these, you need them when importing the number into Famulor


Click Next at the bottom of the page.

​

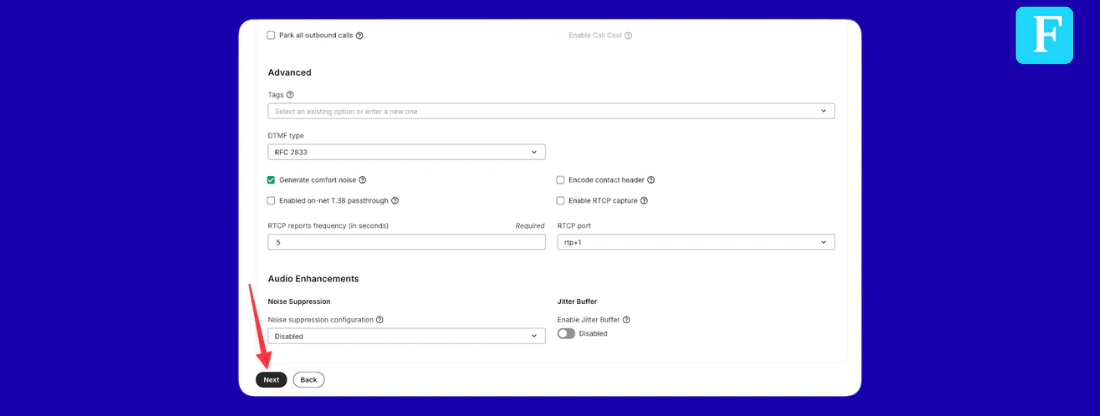

Step 3: Configuration

The wizard shows the Configuration page with connection details, webhooks, and advanced settings. You do not need to change anything here - just verify that the Type shows FQDN Connection and click Next.

​

Step 4: Inbound and Outbound

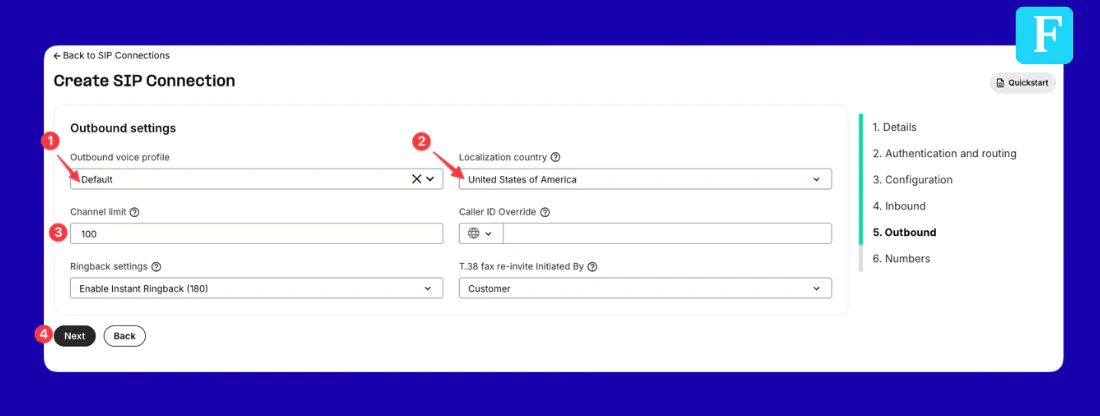

The wizard goes through the Inbound and Outbound steps. Since you already configured these in Step 2, verify the settings and click Next on each page. On the Outbound page, make sure:

1. Outbound voice profile: Select your profile (or “Default”)
2. Localization country: Select your country
3. Channel limit: Set to 10 or higher


​

Step 5: Assign Numbers

The last step of the wizard is the Numbers page:

1. Click Assign numbers
2. Select the phone number(s) you want to use

​

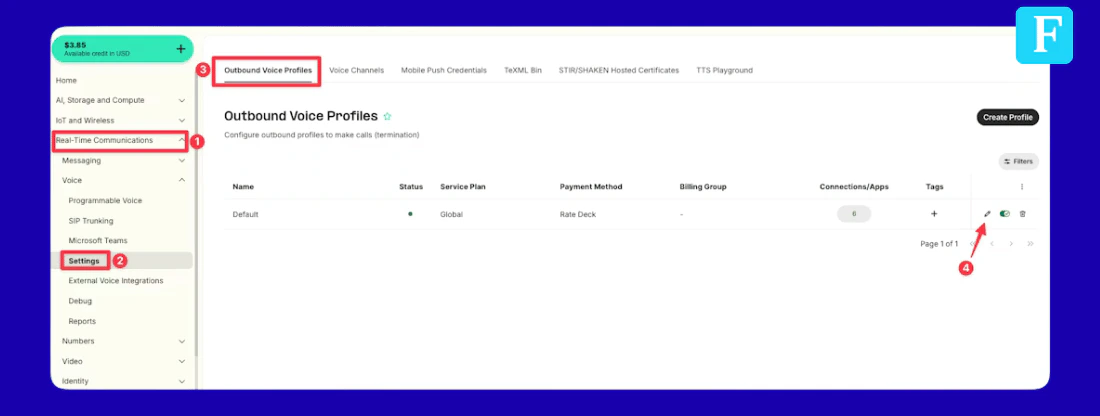

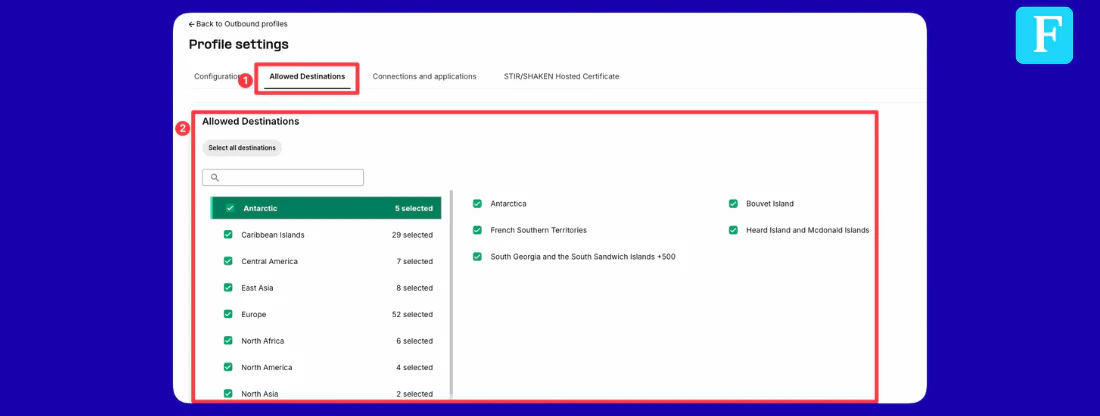

Step 6: Enable Geographic Permissions

1. Go to Voice -> Settings -> Outbound Voice Profiles
2. Click Edit

3. Click your profile -> Allowed Destinations
4. Enable the countries/regions you need to call


​

Step 7: Import Number to Famulor

1. Open Phone Numbers directly in your Famulor dashboard. If it takes you to the login page, log in first - it automatically redirects you to Phone Numbers.

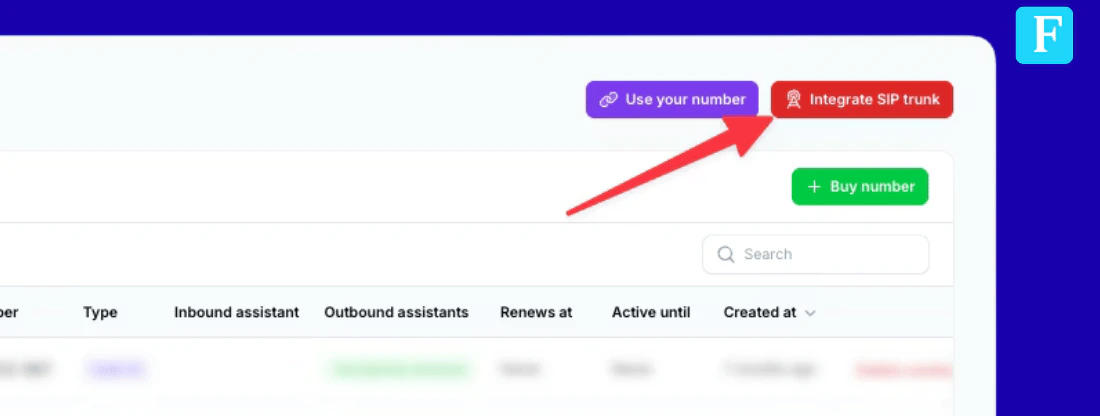

2. Click “Integrate SIP trunk” (top-right corner of the page)

3. Fill in your phone number and SIP credentials:
   Phone number: Your Telnyx number (for example, +1 555 0123)
   Username: The outbound username from Step 2
   Password: The outbound password from Step 2

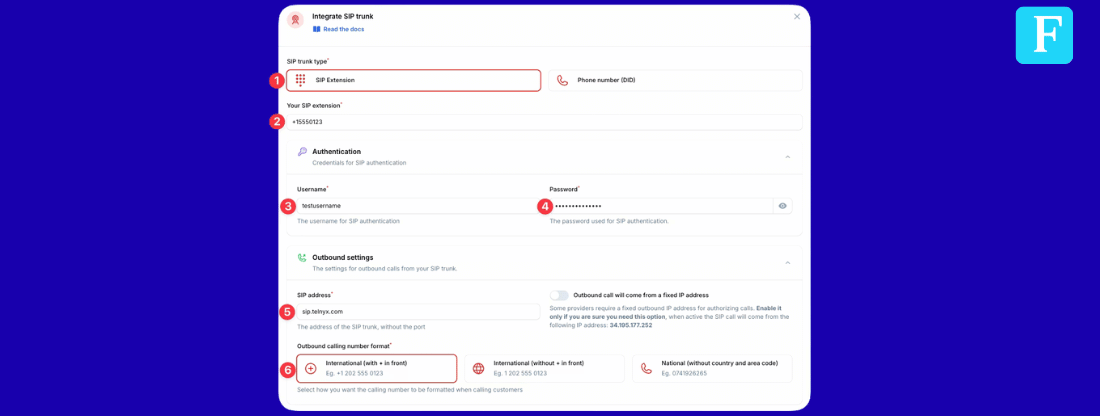

4. Enter outbound settings:
   SIP address: sip.telnyx.com
   Outbound format: International (with + in front)

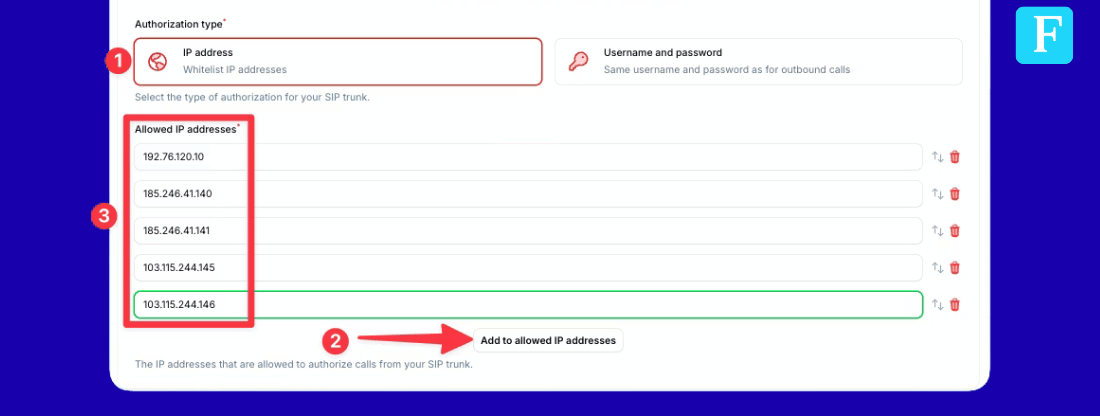

5. Select Authorization type: IP Address and add the Telnyx IP addresses for your region:
   • US: 192.76.120.10
   • Europe: 185.246.41.140 and 185.246.41.141
   • Australia: 103.115.244.145 and 103.115.244.146


6. Select the country where your SIP trunk is located.


​

Step 8: Verify Setup

To test your Telnyx number, assign it to AI assistants. Inbound and outbound require separate assistants:

​

Test Inbound

1. Go to AI Assistants -> create a new assistant (or use an existing one)
2. Set assistant type to Receive phone calls
3. Assign your Telnyx phone number to the assistant
4. Call your Telnyx number from any phone - the AI assistant should answer

​

Test Outbound

1. Create a second assistant with type Make phone calls
2. Assign the same Telnyx phone number to this assistant
3. Click Speak to assistant -> Phone call - Famulor calls your personal phone using the Telnyx number

​

Security Requirements

Your SIP credentials need to be secure:

• Username: Your provider-supplied username
• Password must have:
  • 12 or more characters
  • Numbers
  • Upper and lowercase letters
  • Special characters recommended

​
